(Demo) MatCap Viewer

Downloads OpenGL 2.1 Demopack Download Demo: geexlab-demopack-gl-21/d53-matcap-viewer/ GeeXLab Downloads Forum thread (EN)


I discovered this incredible library of matcap textures and, to quickly test them, I made a small GeeXLab demo that displays several objects (a sphere, a torus and two glTF 3D models) with the same matcap texture. To view another matcap texture, just drag and drop a matcap texture into the demo.

A small part of the matcap lib:


A matcap (or Material Capture) is an image that combines material properties, lighting and reflections. This image is not a regular texture and has to be mapped on an object using special vertex and pixel shaders.


Here is an example of a matcap texture:


and the same matcap on various objects:


The matcap GPU program (GLSL) looks like:

vertex shader:

#version 120

uniform mat4 gxl3d_ModelViewProjectionMatrix;
uniform mat4 gxl3d_ModelViewMatrix;

varying vec4 v_normal;

void main()
{
  gl_Position = gxl3d_ModelViewProjectionMatrix * gl_Vertex;
  v_normal = gxl3d_ModelViewMatrix * vec4(gl_Normal.xyz, 0.0);
}


pixel shader:

#version 120

uniform sampler2D tex0;
varying vec4 v_normal;

void main (void)
{
  vec3 N = normalize(v_normal.xyz);

  // Multiply by 0.5 and adding 0.5 allows
  // to map the normal vector coords from [-1;1] to [0;1].
  vec2 muv = N.xy * 0.5 + vec2(0.5,0.5);

  vec3 t = texture2D(tex0,vec2(muv.x, 1.0-muv.y)).rgb;
  gl_FragColor = vec4(t, 1.0);
}


To run the demo, download GeeXLab, download the OpenGL 2.1 demopack and load in GeeXLab the following demo: geexlab-demopack-gl-21/d53-matcap-viewer/main.xml.

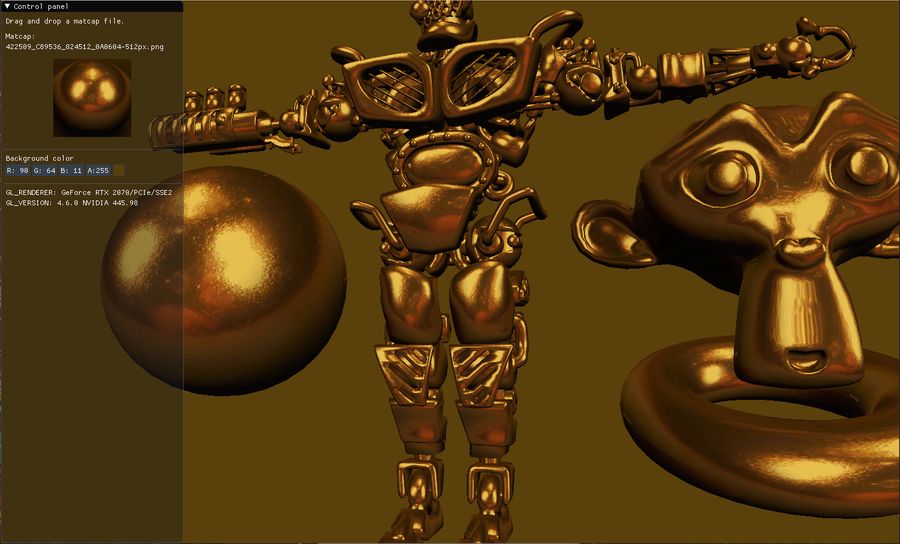

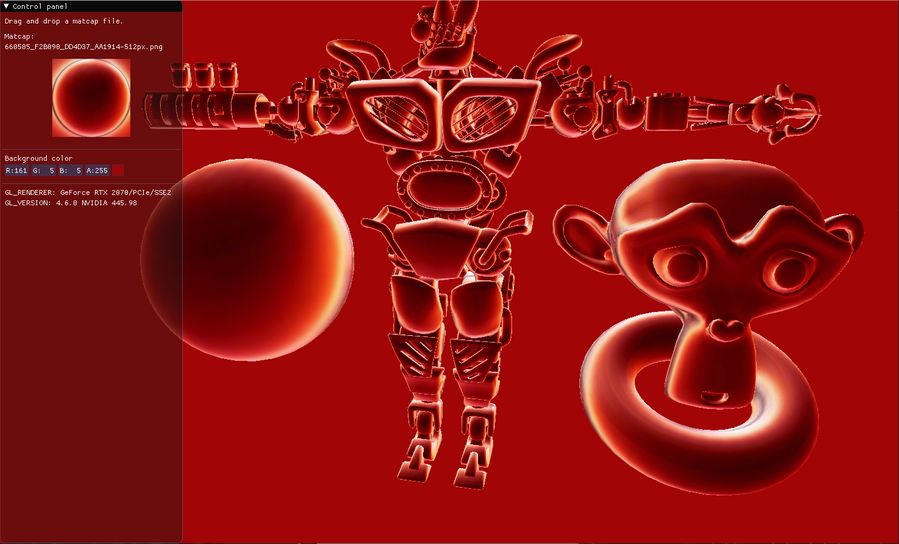

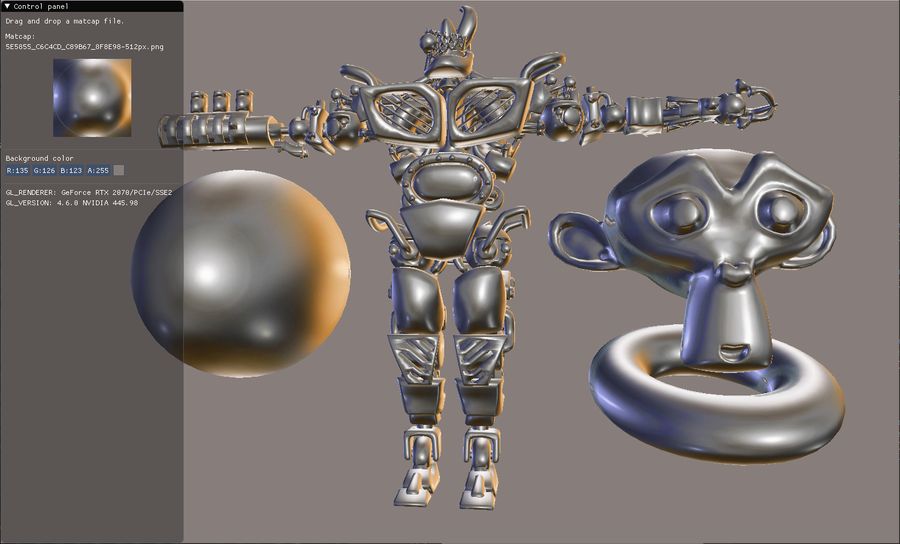

Here are some examples:


References

• MatCap — Render & Art pipeline optimization for mobile devices
• Creating a Spherical Reflection/Environment Mapping shader
• Pixologic Matcap Library
